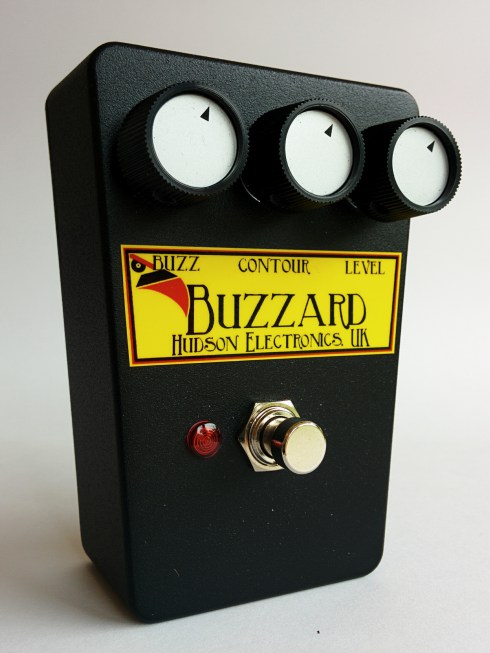

Buzzard
60s buzz tones and beyond

The Buzzard takes you on a fuzzy flight from wasp-like buzzes to thick and greasy fuzzes. Two NOS germanium transistors lie at the heart of this bird. Each transistor serves up its own flavor: the first, a dark and thick boost; the second, a super bright and buzzy full-on fuzz. These two sounds blend together with the "BUZZ" control, then the "CONTOUR" control sculpts both high and mid-range content of the tone. Two simple controls, coupled with the "VOLUME", can create classic Fuzzrite, 60s bite; pseudo octave effects; fuzzy cocked wah; dense, chewy distortion and much more.

ONLY 10 UNITS WILL BE AVAILABLE IN THE UNITED STATES!

Check with an authorized dealer for availability.

Features

• Hand selected NOS Germanium transistors
• CITEC potentiometer
• Carbon film resistors
• Neutrik jack sockets
• Heavy duty foot switch

Controls:

BUZZ – Blends between the two fuzz sounds.

CONTOUR – Low pass filter that adjusts the high and mid-range content of the second (super bright) fuzz sound. Fully CCW is the darkest sound; fully CW the brightest. As the CONTOUR knob affects only the second fuzz sound, it has a greater effect when the BUZZ control is set past half way.

LEVEL – Sets the overall output level.


Power:

A standard 9 volt DC regulated power supply with a 2.1mm negative tip barrel plug or a 9 volt PP3 battery. If you intend on sharing the same powers supply with other pedals, please ensure it is one with isolated outputs. DO NOT DAISY CHAIN WITH OTHER PEDALS: THIS MAY DAMAGE YOUR BUZZARD.

Current Draw: 3mA


Dimensions: (including knobs and jacks)

120 x 80 x 60 mm



Full two year Warranty
